WIREHARNESSSTUDIO

Wire harness engineering, connected

One harness model.
Every engineering view.

Design the electrical system, shape the formboard, and release wire data and BOMs from the same validated source.

Open the studio
  1. 01SchematicSignals and pins
  2. 02FormboardPhysical routing
  3. 03Wire dataCut-ready detail
  4. 04BOMReleased materials

A continuous system from input to release.

Source data
Import existing connection data
Logical design
Define devices, pins, and nets
Physical build
Route branches and calculate lengths
Release output
Issue wire tables, parts, and BOMs

Built for the full harness workflow.

Schematic

Design the electrical system

Build inspectable connections across devices, pins, splices, passives, cables, and signals.

Auto route

Route with engineering intent

Generate readable paths, preserve deliberate geometry, and reshape any connection directly.

Formboard

Turn logic into build geometry

Lay out bundles, branches, lengths, bend paths, panels, and assembly notes at physical scale.

Manufacturing data

Keep release data synchronized

Wire details, cut lengths, colors, gauges, terminations, and BOM entries update from the same model.

Parts library

Standardize what gets built

Reuse connector families, cavities, terminals, seals, supplier data, and approved part choices.

AI inside the project model

A copilot with the whole harness in context.

Give it a goal. It reads the project, drafts structured changes, explains the plan, and waits for your approval.

Review the change before it changes the design.

Every proposal stays visible, validated, and reversible before it reaches the shared model.

  • Draft components, connections, and imports as structured project changes
  • Check identifiers, pins, routes, and release dependencies
  • Apply, revise, or undo with the same controls as any manual edit

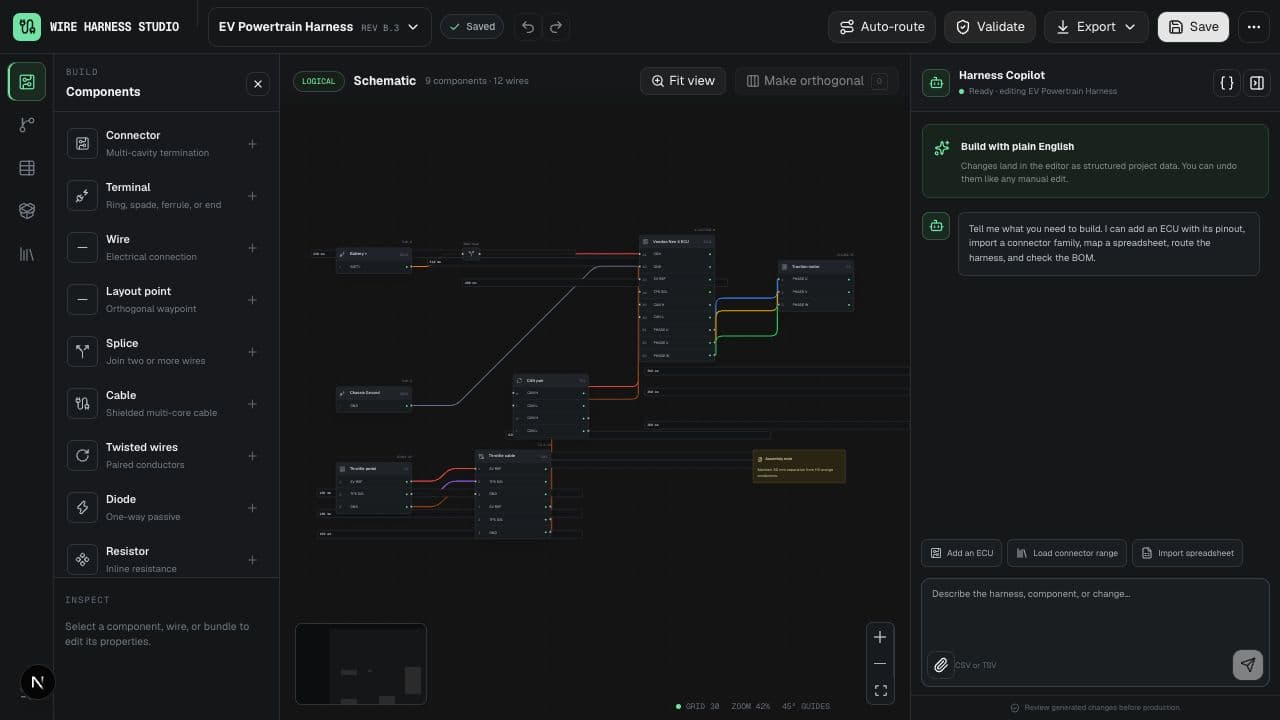

Wire Harness Studio schematic with the integrated copilot and a routed EV powertrain harness

Carry one decision through every view.

A harness change stays connected from the electrical definition to the physical build and release package.

  • Trace the same net across schematic and formboard
  • Recalculate bundle and conductor lengths from routed geometry
  • Publish wire details and BOMs without rebuilding the data

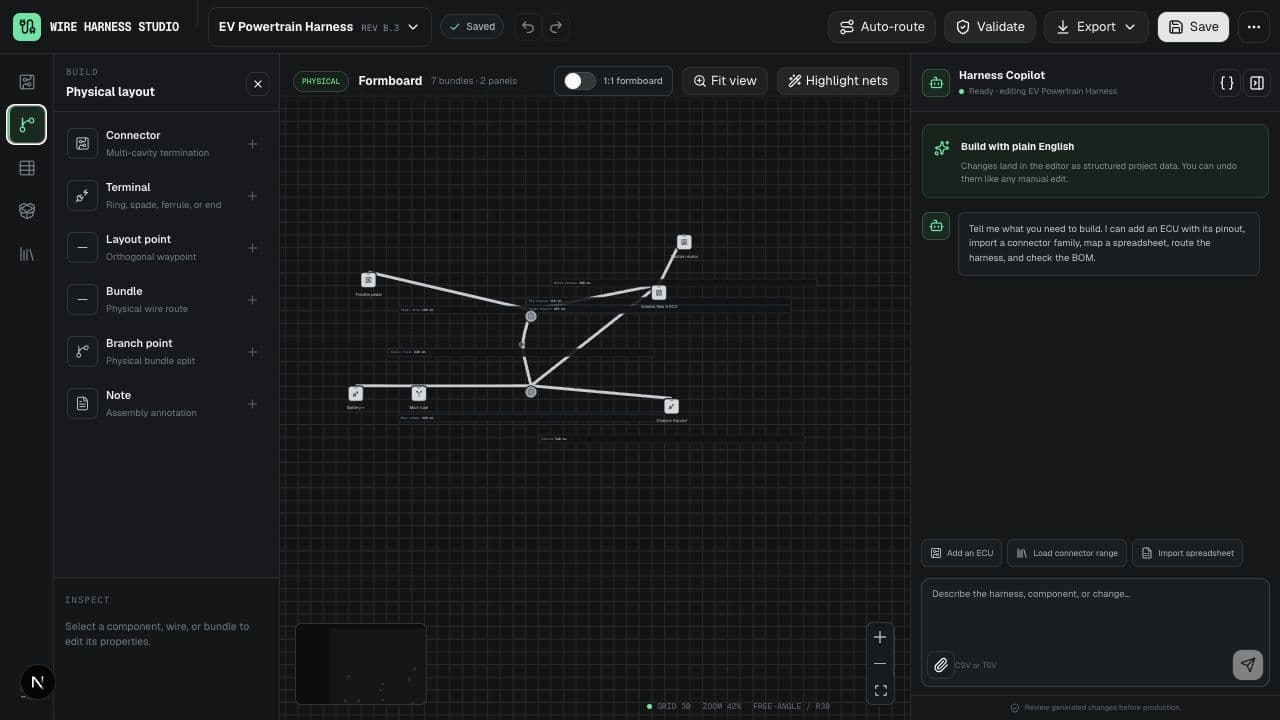

Wire Harness Studio physical formboard view with bundle branches, dimensions, and the integrated copilot
Bring work forward
Turn CSV, TSV, and JSON into structured harness records.
Work in context
The copilot reads the same devices, pins, nets, and parts you do.
Keep authority
Review, validate, and approve every generated change.
Own the model
Open JSON keeps project data inspectable and portable.

One change, carried through release.

The schematic, physical layout, and release data stay synchronized because every object shares the same stable identity.

  1. Define

    Create devices, pins, signals, and project standards.

  2. Connect

    Map nets manually, from source data, or with the copilot.

  3. Route

    Shape schematic paths and production formboard geometry.

  4. Release

    Validate the model and issue manufacturing data.

Structured import

Turn source data into engineering objects.

Map CSV or TSV columns once, resolve ambiguous fields with the copilot, and create inspectable devices, wires, and terminations.

Project-aware AI

Delegate the task. Keep the engineering judgment.

Describe the outcome. The copilot reads project context, drafts the work, explains its decisions, and waits for approval.

YOU

Add a 48-pin vehicle controller. Map CAN, power, ground, and four analog inputs from the connection sheet.

COPILOT

Prepared ECU-02, mapped eight used cavities, created the twisted CAN pair, and flagged every unresolved termination for review.

8 SIGNALS MAPPED2 WIRES DRAFTEDREVIEW REQUIRED

Pricing

Start free. Upgrade the engineering workspace, then add AI credits only when the agent runs.

Free

Complete small harnesses without a trial clock.

$0forever
  • Unlimited harness projects
  • 150 items per harness
  • Direct CSV and TSV import
  • Schematic and formboard editing
  • BOM, wire table, and JSON export
  • Public review links
Open the studio

Studio

The complete system for production harness work.

$15per editor / month

Billed at $180 per editor annually.

  • Unlimited items and projects
  • Project-aware copilot access
  • Review every copilot change before apply
  • Private projects and reviewer links
  • Unlimited revision history
  • Shared parts and project standards
  • Production formboards and manufacturing outputs
  • Reviewers and shop-floor viewers stay free
Choose Studio
Pay as you go

AI credits

Power the project-aware agent without another subscription. Add credit when you need it; review-before-apply is always included.

Credit packs
$10$25$50
Buy credits in Studio
Agent usageMetered credits
Balance
100 credits = $1
Metering
Usage based
Commitment
None

Credit is debited only when the agent runs. Task cost varies with project context.

No AI minimum
Buy a balance only when agent work demands it.
Editors only
Review and manufacturing access cost $0.
Your project stays yours
Export portable project data on every plan.

Open a complete harness project.

Inspect the schematic, formboard, wire data, BOM, and copilot in context before making a change.
